FRAME

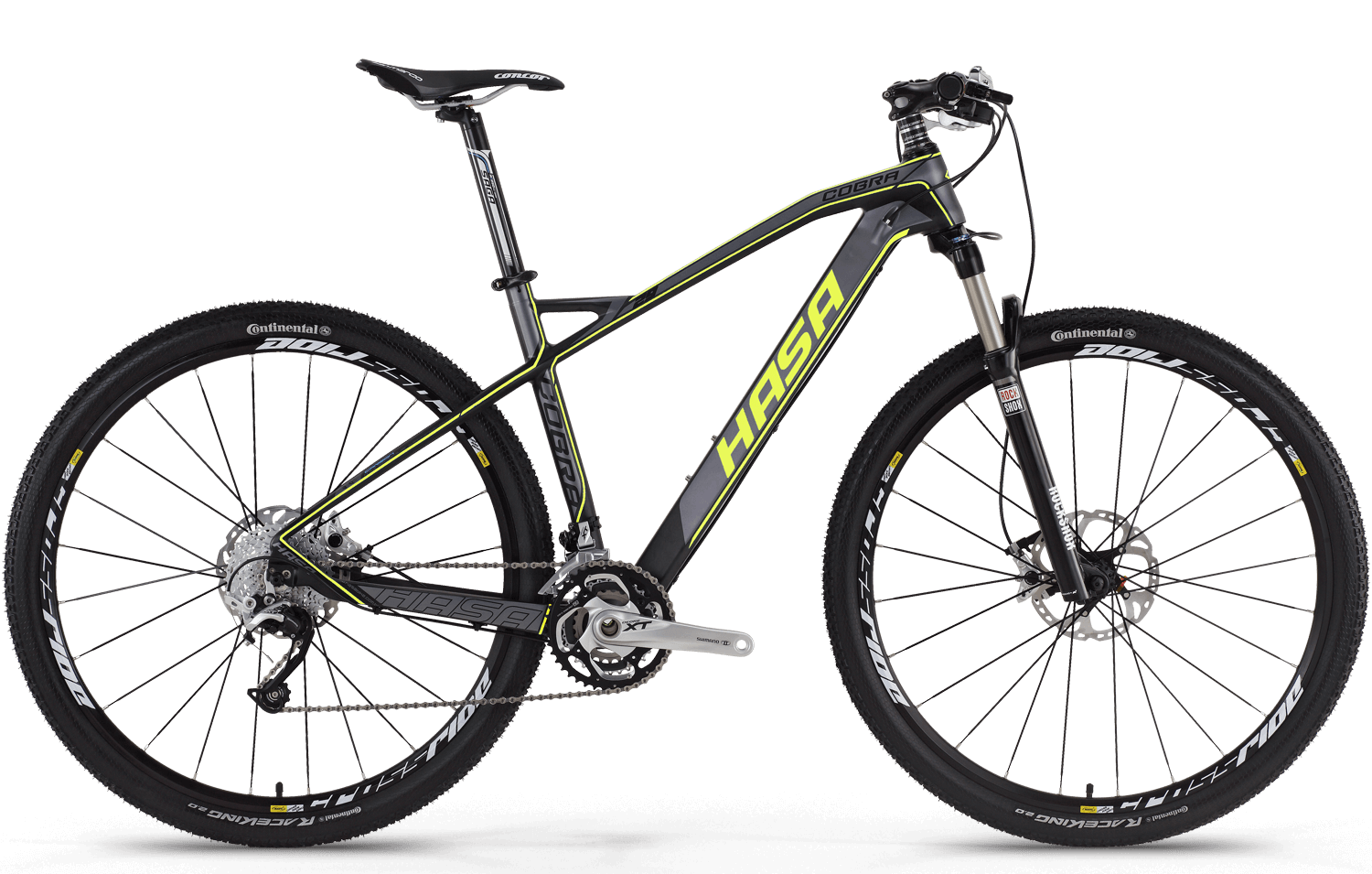

proimages/icon/Model.png Model COBRA
proimages/icon/SP.png SP 33SPD
proimages/icon/Size.png Size 16.5, 19, 20, 21 inch
proimages/icon/Color.png Color Matte Black&Gray&Blue / Matte Black&Gray&Yellow
SHIFTER SYSTEM

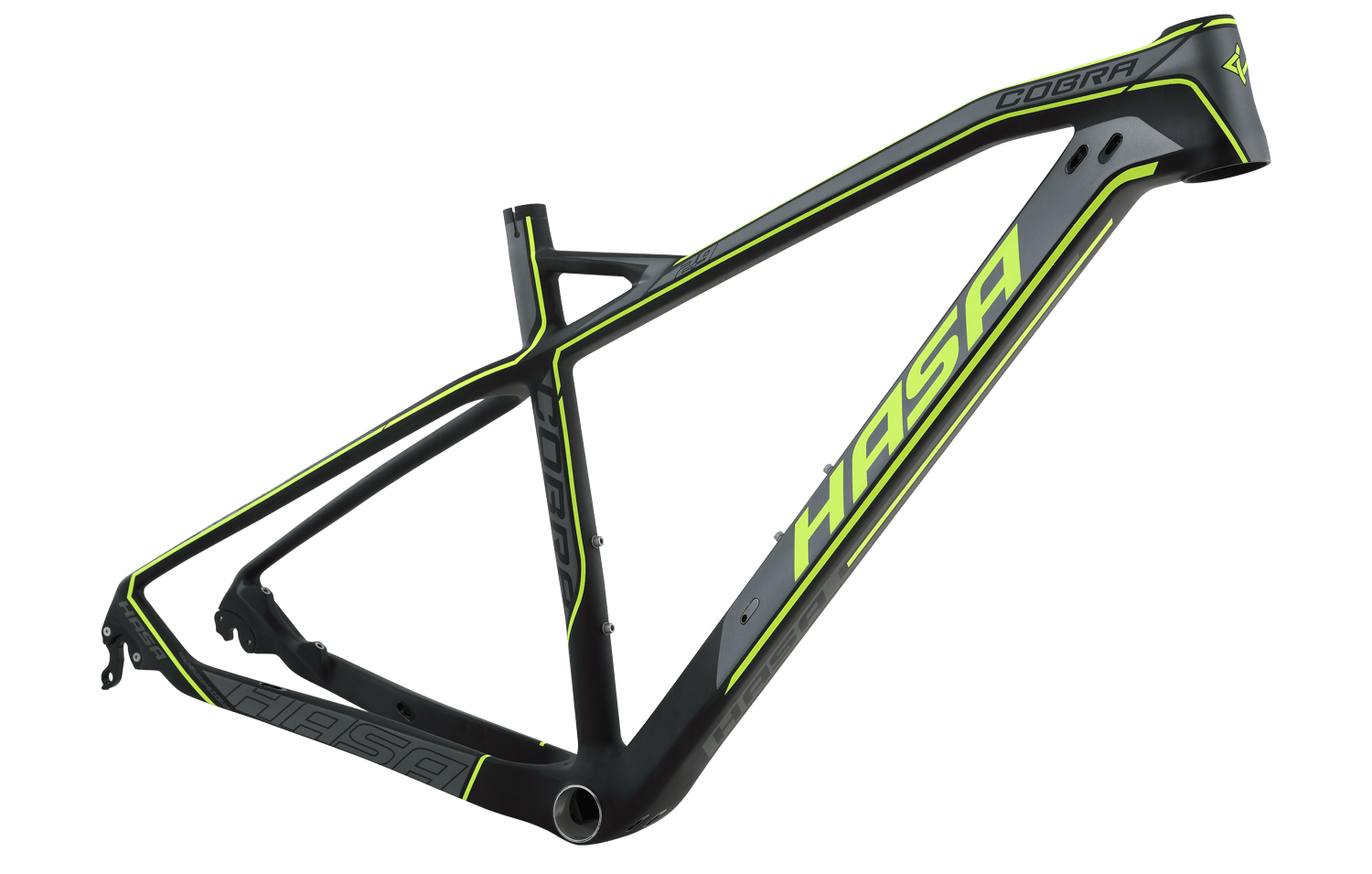

proimages/icon/Frame.png Frame T700 CARBON TAPERED, W/SHIMANO SIDE SWING
proimages/icon/Fork.png Fork Manitou MARKHOR(29er), TAPERED, Travel:100mm W/Lock out
proimages/icon/HP.png Head Parts SAGA Inetegrated 1-1/8" - 1-1/2"
proimages/icon/BBP.png B.B Parts SHIMANO BB-92 Press Fit
proimages/icon/S-Pin.png S./Pin SAGA Alloy/Carbon
proimages/icon/Shifter-R.png Shifter SHIMANO XT 3*11SPD
proimages/icon/FDerailleur.png F/Derailleur SHIMANO XT
proimages/icon/RDerailleur.png R/Derailleur SHIMANO XT
proimages/icon/CWheel.png C/Wheel SHIMANO XT 40-30-22T
proimages/icon/Freewheel.png Freewheel SHIMANO XT 11-40T
proimages/icon/Chain.png Chain SHIMANO CN-HG701-11
proimages/icon/Rim.png Rim MAVIC CROSSRIDE 29ER
proimages/icon/Hub.png Hub MAVIC CROSSRIDE 29ER
proimages/icon/Spokes.png Spokes MAVIC CROSSRIDE 29ER
proimages/icon/Tire.png Tire Continental Race King 29*2.0 Folding
proimages/icon/Saddle.png Saddle SAN MARCO
proimages/icon/Stem.png Stem SAGA Alloy/Carbon
proimages/icon/Hbar.png H/BAR SAGA Full Carbon
proimages/icon/seatpost.png Seatpost SAGA Full Carbon
proimages/icon/Brake.png Brake SHIMANO XT W/180mm Rotor
proimages/icon/Shifter-R.png B/Lever SHIMANO XT
proimages/icon/Weight.png Weight 11.3kg
Frame size Top tube(A) Head tube length(B) Fork length(C) Head tube angle(D) Bottom bracket drop(E) Chain stays(F) Seat tube angle(G) Seat tube(H)
16.5'' 570mm 95mm 506mm 71.5° 65mm 440mm 73.5° 420mm
19'' 590mm 105mm 506mm 71.5° 65mm 440mm 73.5° 470mm
20'' 615mm 115mm 506mm 71.5° 65mm 440mm 73.5° 520mm
21'' 640mm 130mm 506mm 71.5° 65mm 440mm 73.5° 530mm
