ECL1(EU)

ECL1(EU)
Featured
proimages/icon/Model.png Model ECL1
proimages/icon/SP.png SP 9SPD
proimages/icon/Size.png Size 18inch(C-T)

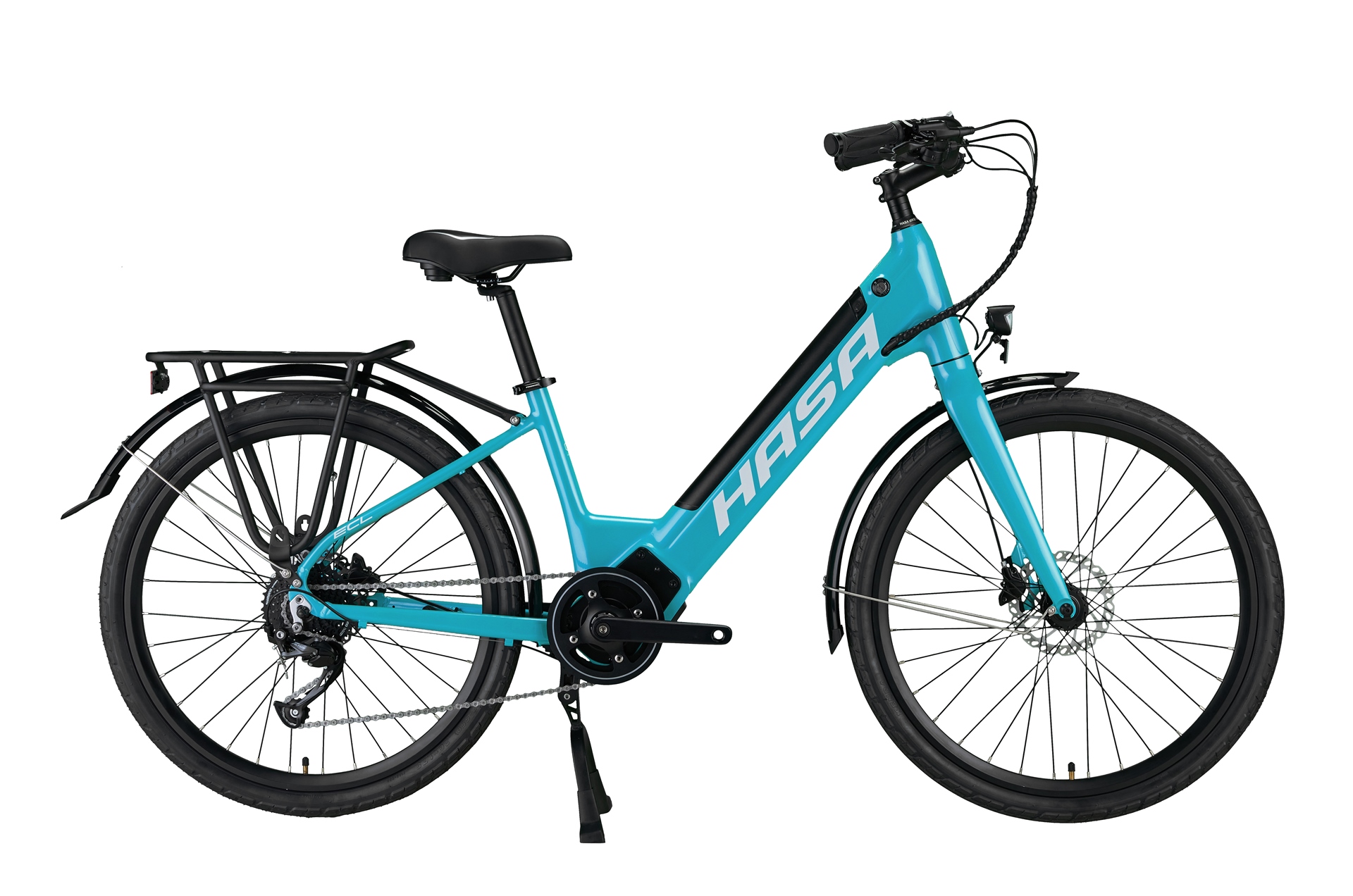

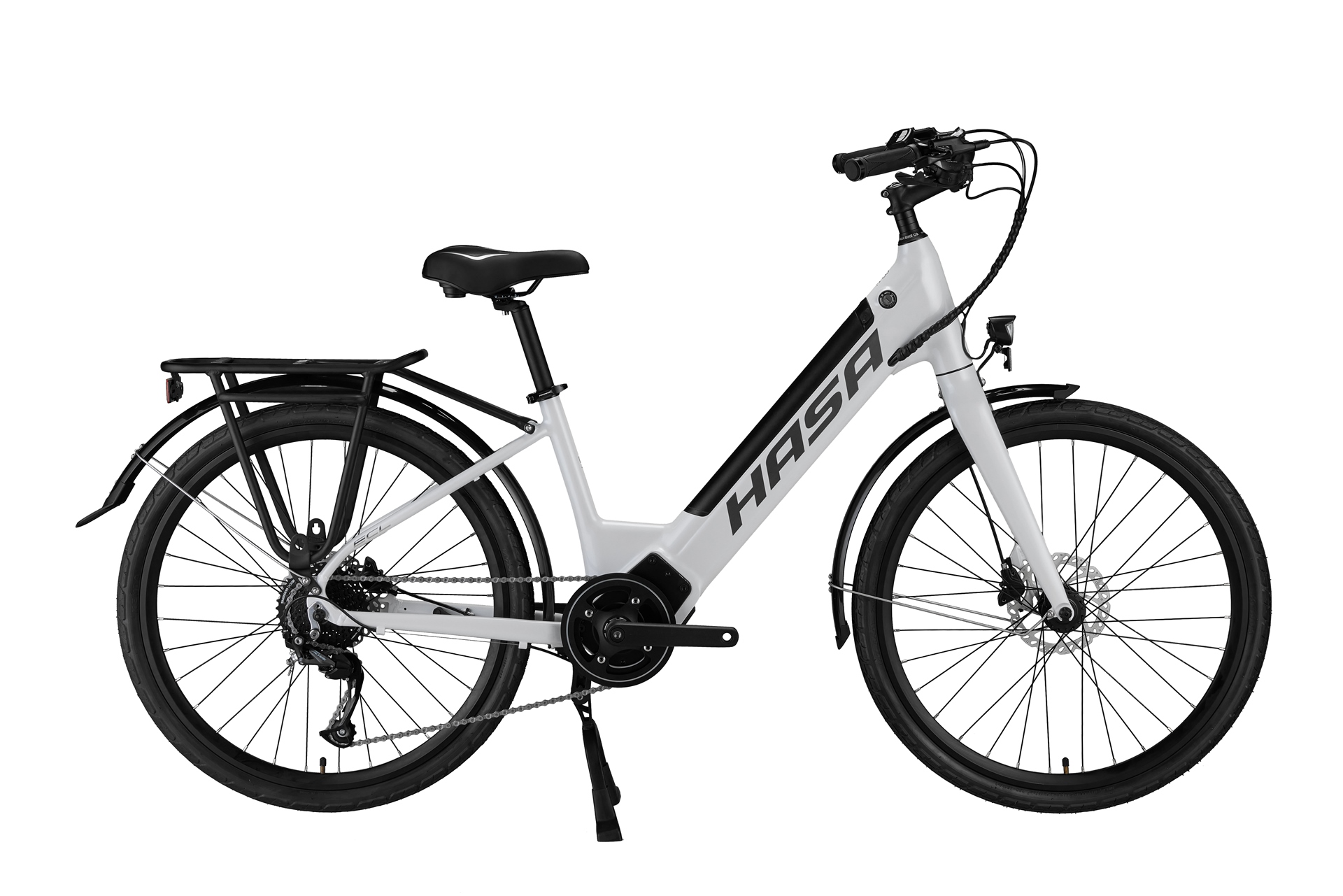

proimages/icon/Color.png Color Blue&White, White&Black
Specifications
proimages/icon/Frame.png Motor DAPU M080MD 250W (incloud B.B Parts, C/Wheel)
proimages/icon/Frame.png Display 5 Speed PAS
proimages/icon/Frame.png Battery HWT 36V 14Ah
proimages/icon/Frame.png Frame Alloy 6061
proimages/icon/Fork.png Fork UDING TK700 700C*1-1/8 80MM W/LOCK OUT
proimages/icon/HP.png Head Parts GINEYEA GH-190 1-1/8''
proimages/icon/BBP.png B.B Parts DAPU
proimages/icon/S-Pin.png S./Pin SAGA Alloy
proimages/icon/Shifter-R.png Shifter SHIMANO ALTUS 9SPD
proimages/icon/FDerailleur.png F/Derailleur NIL
proimages/icon/RDerailleur.png R/Derailleur SHIMANO ALTUS
proimages/icon/CWheel.png C/Wheel DAPU
proimages/icon/Freewheel.png Freewheel SHIMANO ALTUS 11-34T
proimages/icon/Chain.png Chain KMC E9S
proimages/icon/Rim.png Rim 700C Alloy Double wall
proimages/icon/Hub.png Hub JOYTECH Alloy Black
proimages/icon/Spokes.png Spokes Steel ED Black
proimages/icon/Tire.png Tire CST 700*40C
proimages/icon/Saddle.png Saddle SAGA STEEL RAIL SAND BLACK
proimages/icon/Stem.png Stem SAGA Alloy SAND BLACK
proimages/icon/Hbar.png H/BAR SAGA Alloy SAND BLACK
proimages/icon/seatpost.png Seatpost SAGA Alloy SAND BLACK
proimages/icon/Brake.png Brake BENGAL ARES3
proimages/icon/Shifter-R.png B/Lever BENGAL ARES3
proimages/icon/Weight.png Weight kg
Frame size Top tube(A) Head tube length(B) Fork length(C) Head tube angle(D) Bottom bracket drop(E) Chain stays(F) Seat tube angle(G) Seat tube(H) Stack Reach
18" 570mm 205mm 463mm 71° 50mm 455mm 67.7° 457mm mm mm
